Slim XLIGHT

The airbrush for primers, an easy-to-use entry level at an extra light price

The latest addition to the family, the SLIM XLIGHT combines the reliability of the historic SLIM model with new technical / technological solutions that make it more attractive, light, reliable and performing.

Exploded View PDF PDF Catalogue PDF Instructions

discover all the Slim XLIGHT serie

Slim XLIGHT S HALO POM C 680 cc with regulator
Ref.
8230**
Tank
POM C 680 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Top Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
0.5 - 2.5 bar/recommended at 2 bar
Air consumption
260l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

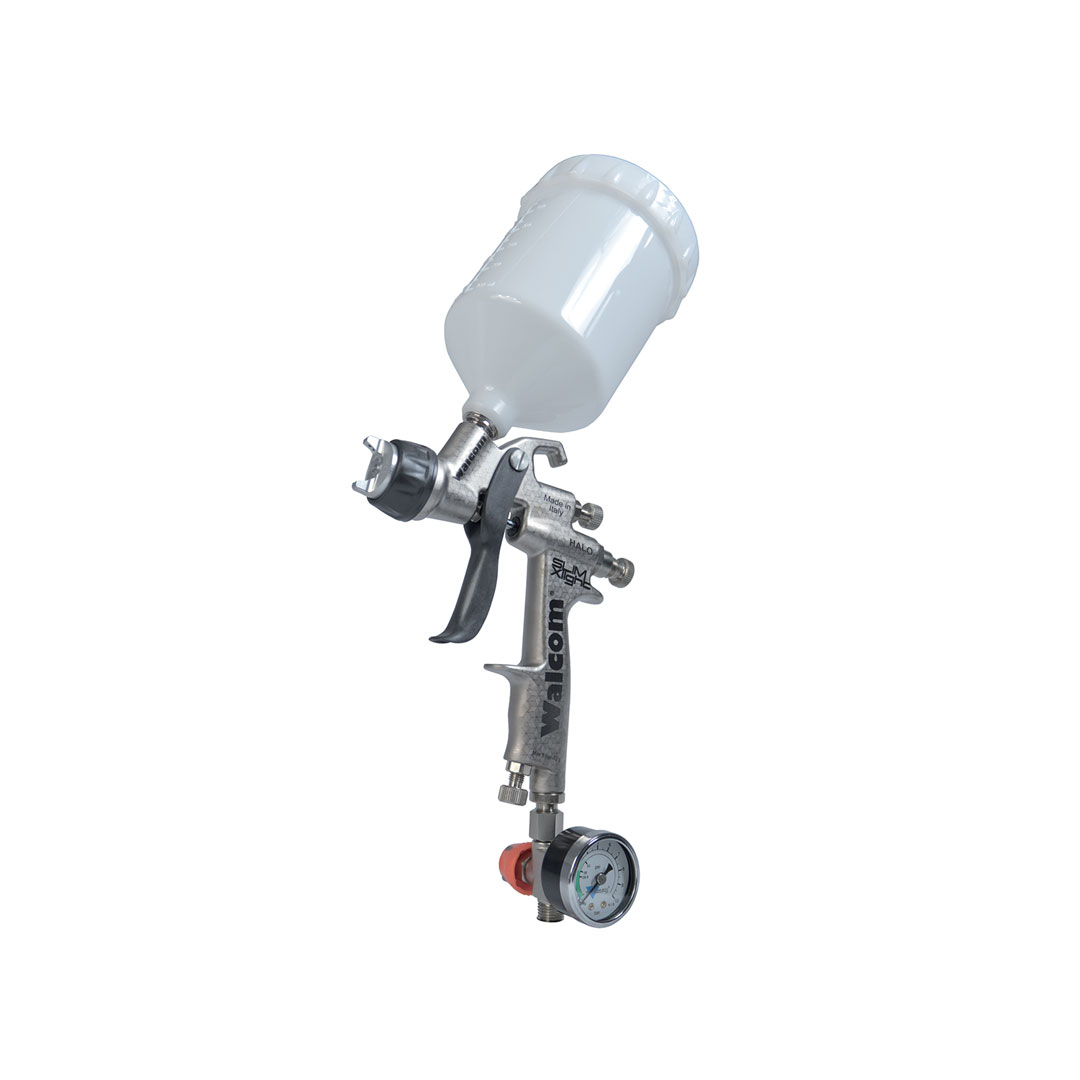

Slim XLIGHT S HALO - Aluminium 750 cc with regulator
Ref.
8235**
Tank
alluminio 750 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Top Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
0.5 - 2.5 bar/recommended at 2 bar
Air consumption
260l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)
slim_x_i_hte_autoclave
Slim XLIGHT S HALO SR - POM C 680 cc
Ref.
8220**
Tank
POM C 680 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
range 0.5 - 2.5 bar/recommended at 2 bar
Air consumption
260l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Add noozle diameter to Ref. (**)
Slim XLIGHT S HALO SR - alluminio 750 cc
Ref.
8225**
Tank
alluminio 750 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
range 0.5 - 2.5 bar/recommended at 2 bar
Air consumption
260l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Add noozle diameter to Ref. (**)

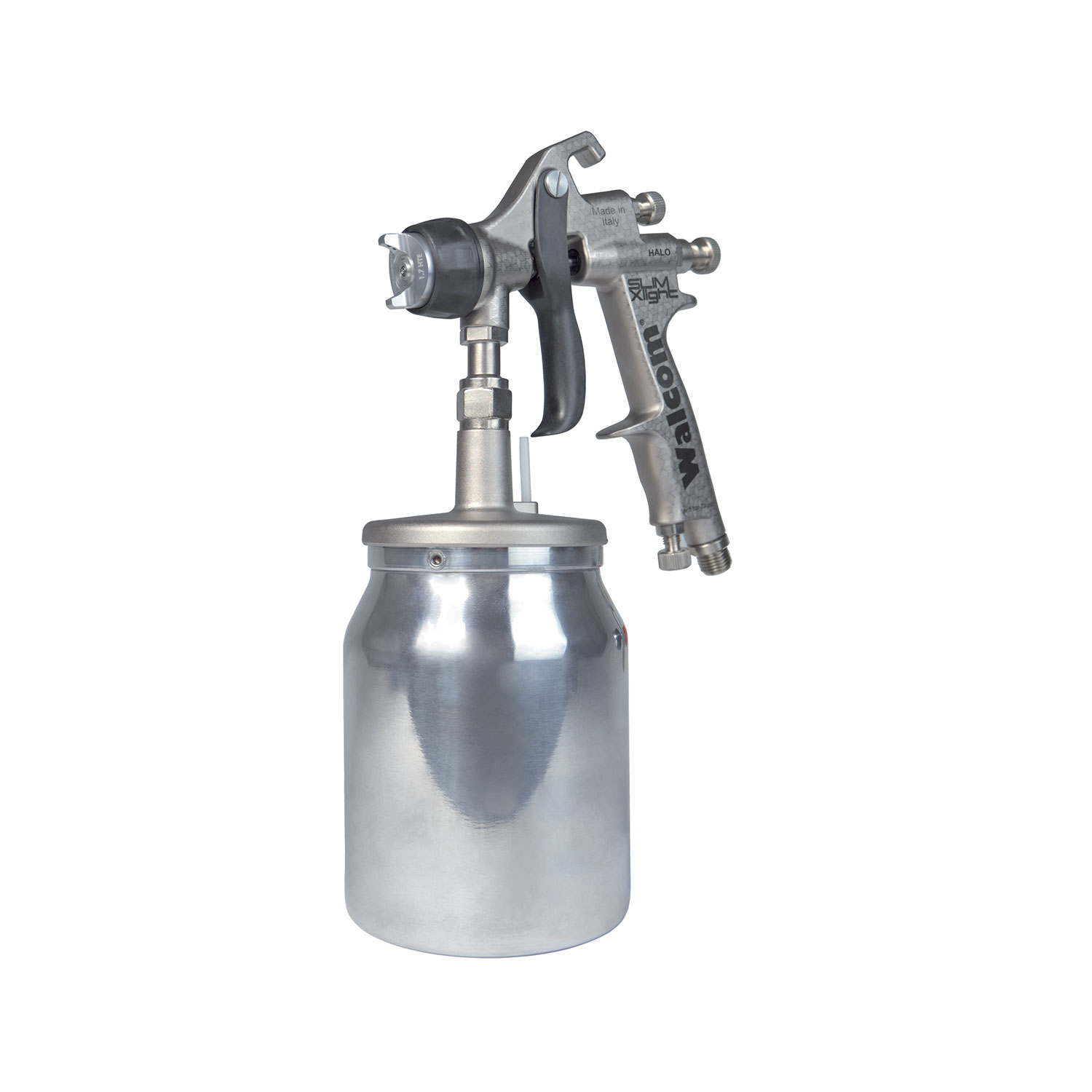

Slim XLIGHT I HALO SR
Ref.
8272**
Tank
Camlock suction cup aluminium 1000 cc
Body
Matte finish planed aluminium
Lever
PPA/glass fiber
Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
463 g
Working pressure
range 0.5 - 2.5 bar / recommended at 2 bar
Air consumption
260 l/min at 2 bar
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Add noozle diameter to Ref. (**)
Slim XLIGHT S HVLP - POM C 680 cc with regulator
Ref.
8330**
Tank
POM C 680 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Top Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
0.5 - 2.5 bar/HVLP at 2 bar
Air consumption
295l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

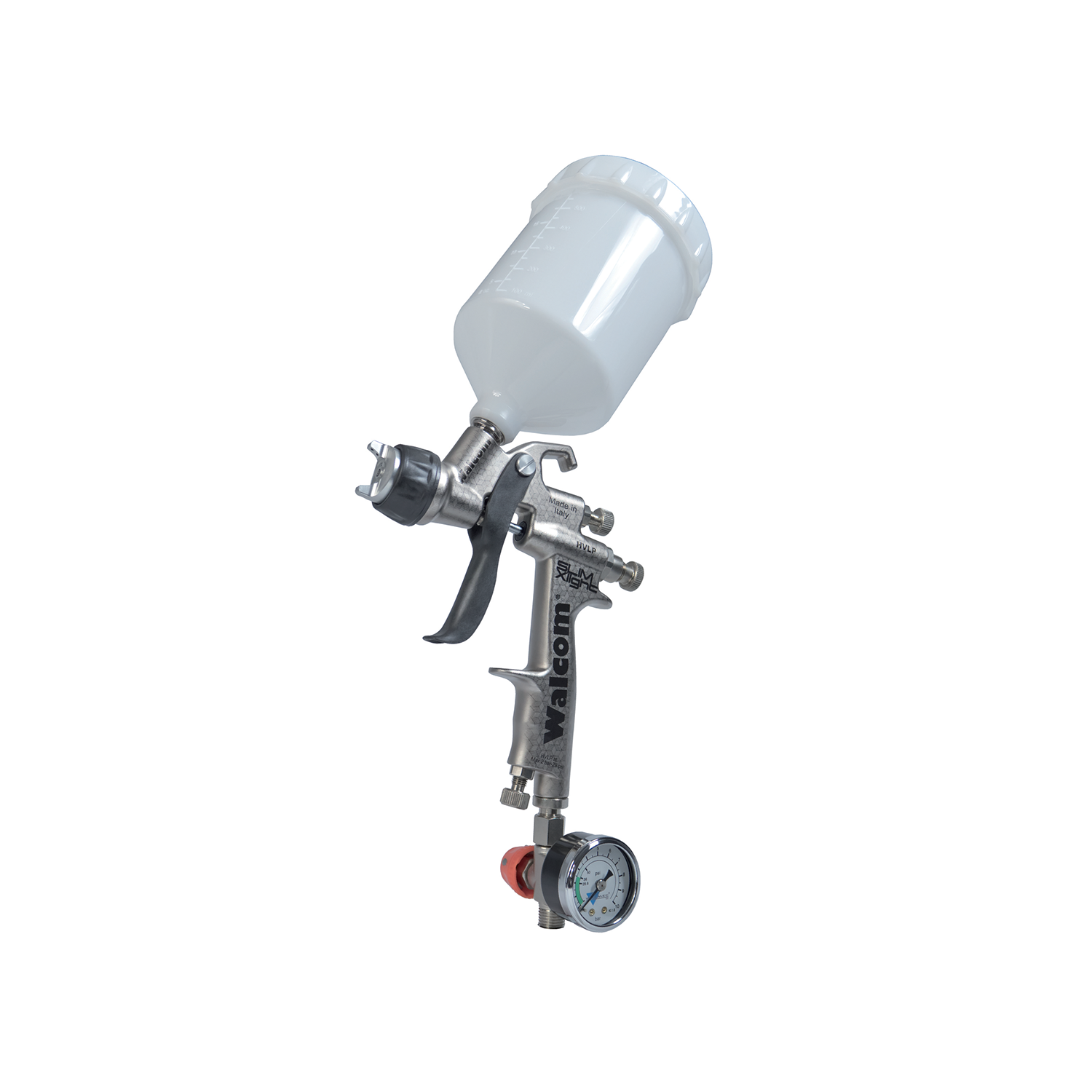

Slim XLIGHT S HVLP - Aluminium 750 cc with regulator
Ref.
8335**
Tank
Aluminium 750 cc
Body
Matte finish-planed aluminium
Lever
PPA / glass fiber
Top Cap
Anodized aluminum
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
455 g
Working pressure
0.5 - 2.5 bar/HVLP at 2 bar
Air consumption
295l/min at 2 bar
Nozzle diameters
1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

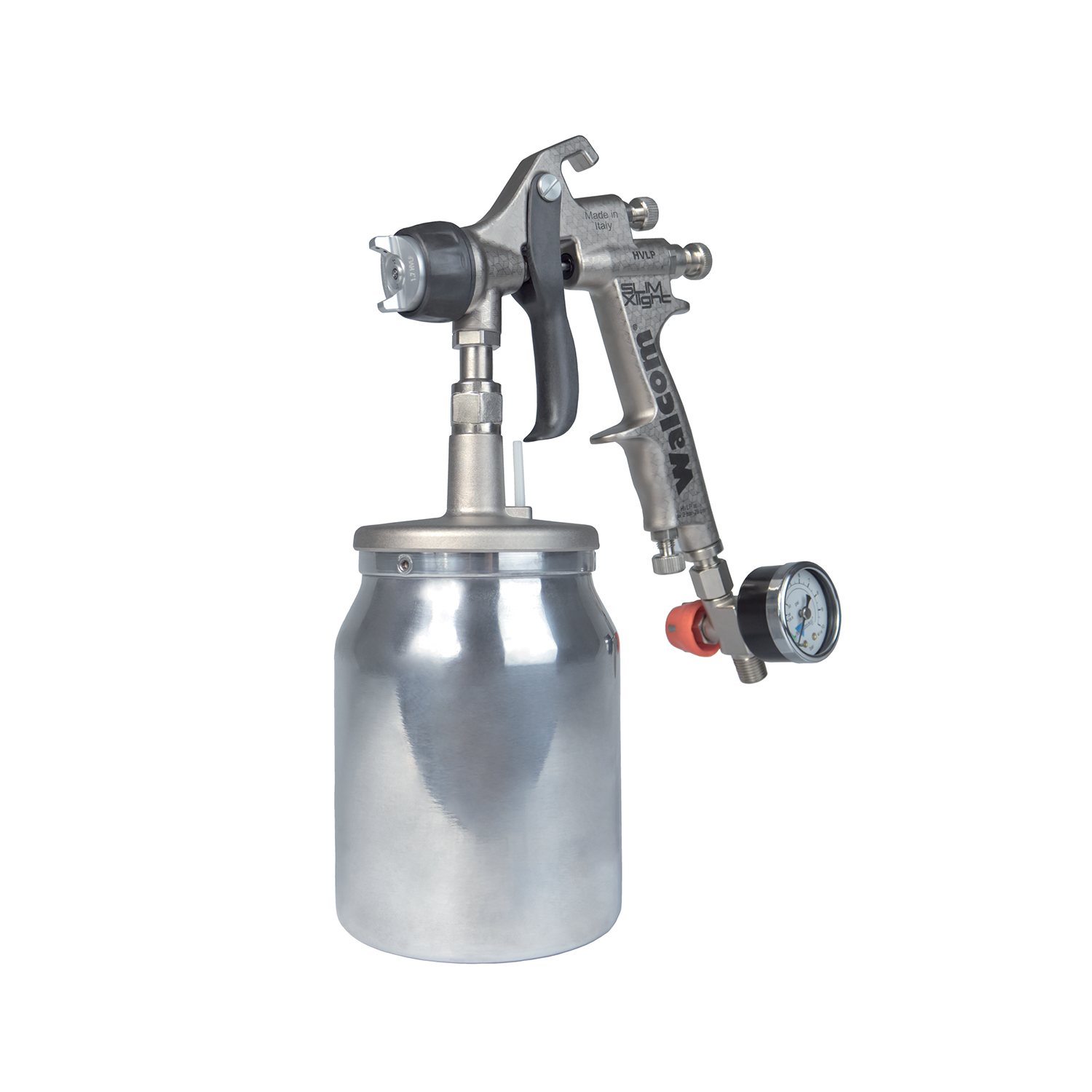

Slim XLIGHT I HVLP
Ref.
8370**
Tank
Camlock suction cup aluminium 1000 cc
Body
Forged and chrome-planed aluminium
Lever
PPA / glass fiber
Top Cap
Chemical nickel-plated brass
Nozzle
AISI 303 stainless steel
Needle-spring
AISI 303 stainless steel
Seal gaskets
PTFE (Teflon)
Weight
463 g
Working pressure
0.5 - 2.5 bar/HVLP at 2 bar
Air consumption
295l/min at 2bar
Nozzle diameters
1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add noozle diameter to Ref. (**)

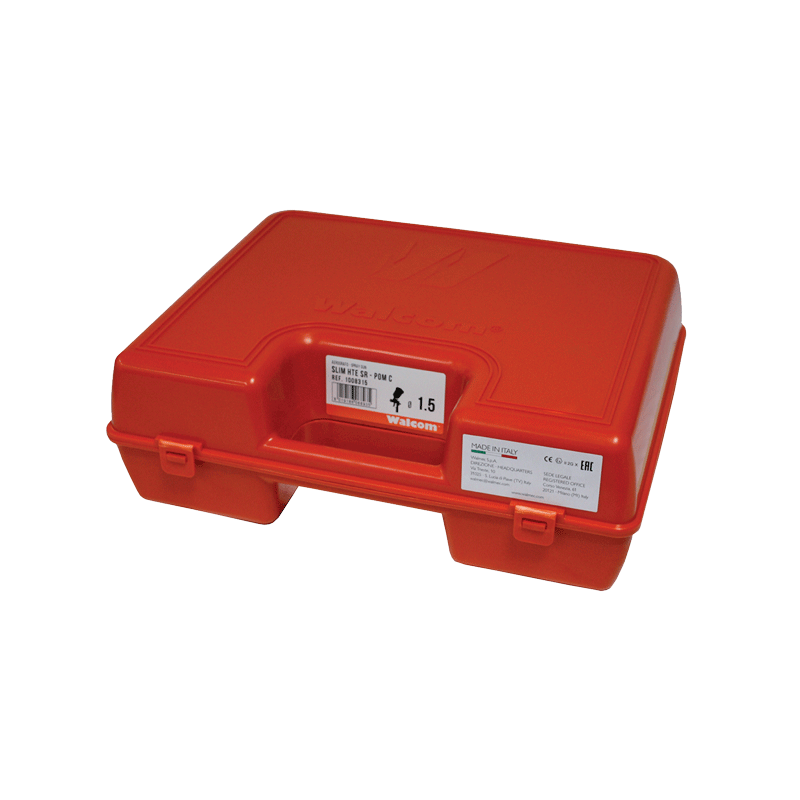

packaging

All spray guns of the Walcom® range are supplied in easy to use rigid plastic cases containing all the accessories for a proper cleaning and maintenance of the product.
