Drying solutions - Fan Jet - Eco Dry

The Ecodry line and Drying solutions line includes the range of quick water-based paint drying guns and systems. Ecodry, exploiting the Venturi system, can increase the emitted air volume by about 15 times, thus significantly reducing drying time. The enormous generated volume of air, in fact, associated with heat taken from the paint booth (20% mains air, 80% recycled air), allows for the fast evaporation of water residue. The range now also includes a LIGHT version made of insulating antistatic thermoplastic material for lightweight and heatproof work. IMPORTANT: work with perfectly filtered air to avoid the infiltration of impurities that could compromise finish quality.

PDF Catalogue

discover all the Drying solutions - Fan Jet - Eco Dry serie

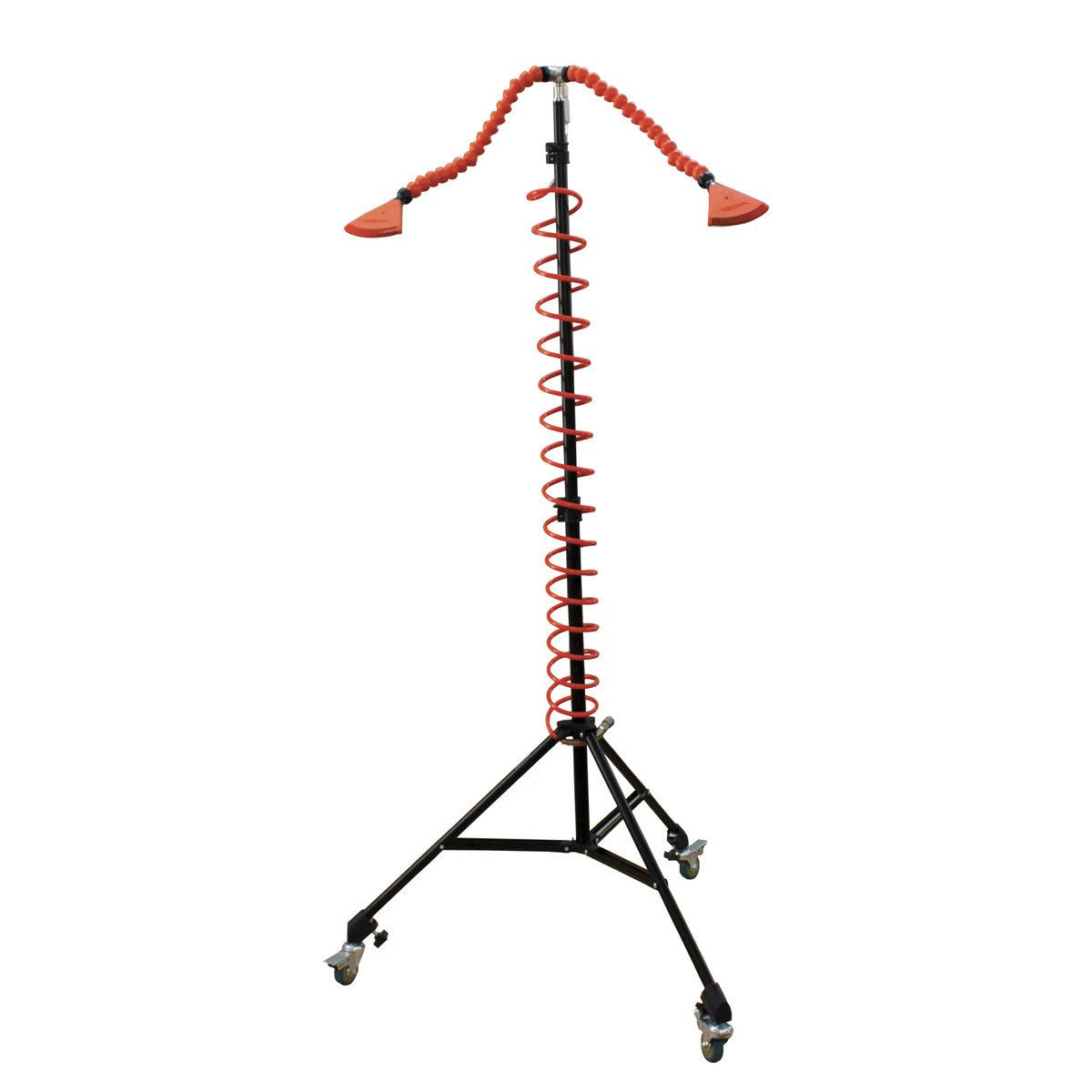

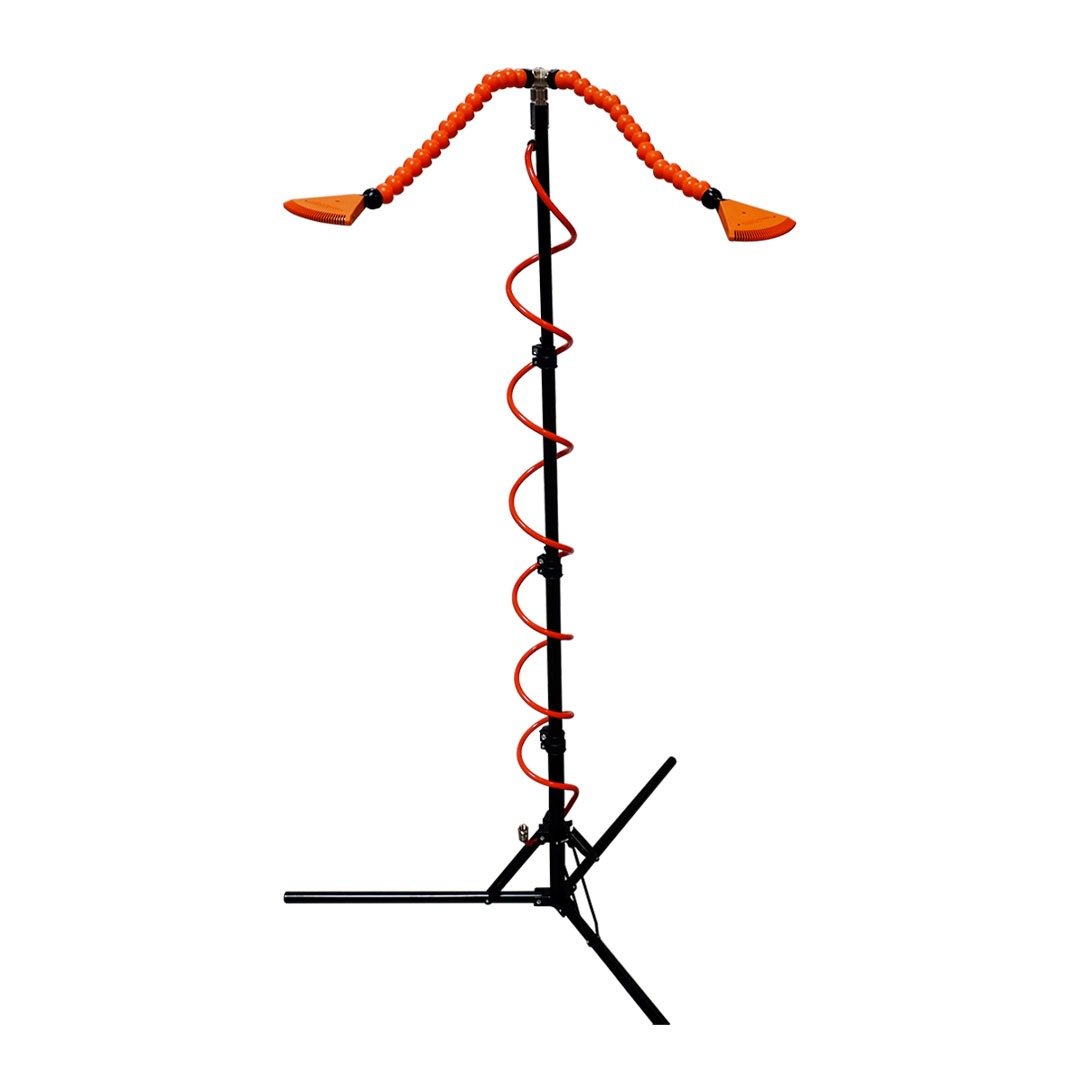

Fan Jet Stand
Ref.
60167
Support for nr. 4 FUN JET nozzles for drying at 70°C for basecoat.
20-50 cm (7.8/19.6 in) blow distance.
Structure
aluminium
Height
adjustable from 130 to 180 cm (51/70 in)
Tilt
adjustable from 0 to 360°
Active area
90 - 180 cm (35/70 in)
Weight
4 Kg (141 oz)

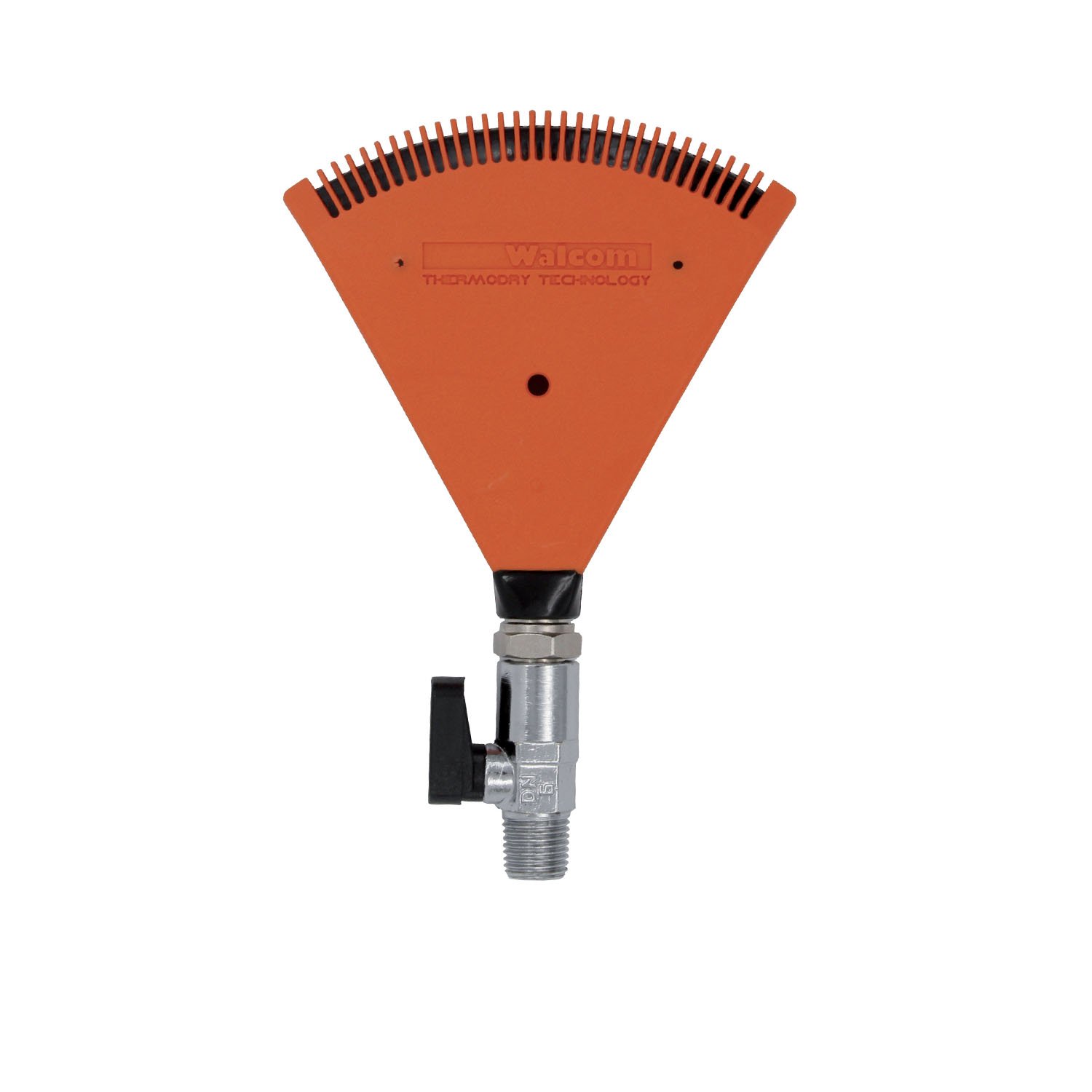

Air Blower Pro
Ref.
60150/BP
Continuous fl ow drying gun 70°C for basecoat, equipped with air regulator.
Blow distance
- 40-50 cm blow distance in the first phase
- 10-20 cm in final drying
Body
Metallic
Nozzle
Nylon and rubber radial
Air consumption
265 l/min to 3 bar
Weight
300 g

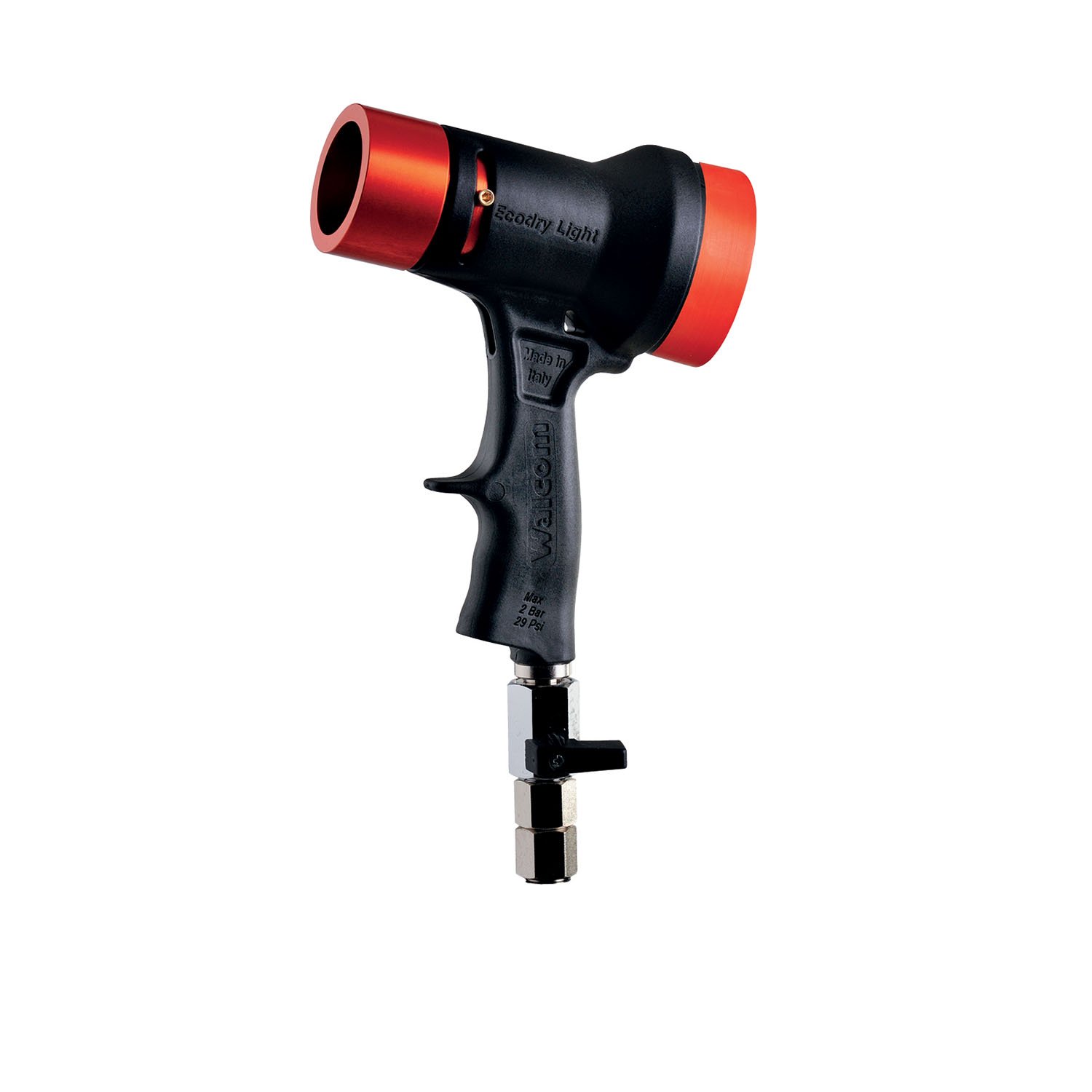

Ecodry Light
Ref.
60143
Super light nylon blower to dry waterborne paint, adjustable flow-volume.
Body
Nylon
Blow distance
40-50 cm from the surface, continuously moving the gun
Operating air pressure
0.5 - 2.0 bar
Air consumption
200-300 l/min
Package
1 pcs
Weight
390 g

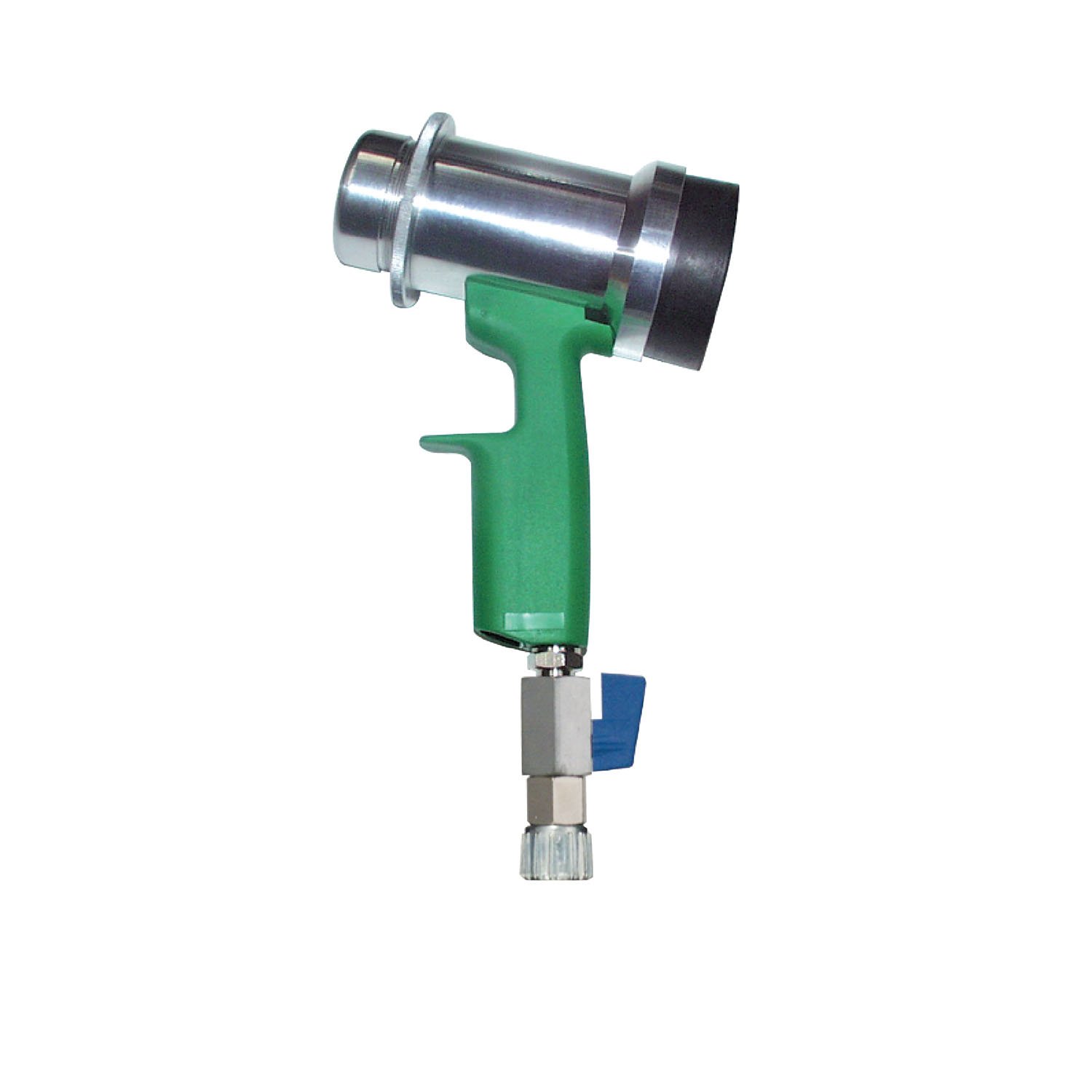

Ecodry
Ref.
60125
Aluminum blower gun to dry waterborne paint, adjustable flow - volume.
Central body
Anodised aluminium
Grip
Nylon
Blow distance
40-50 cm from the surface, continuously moving the gun
Operating air pressure
0.5 - 2.0 bar
Air consumption
200-300 l/min
Package
1 pcs
Weight
550 g

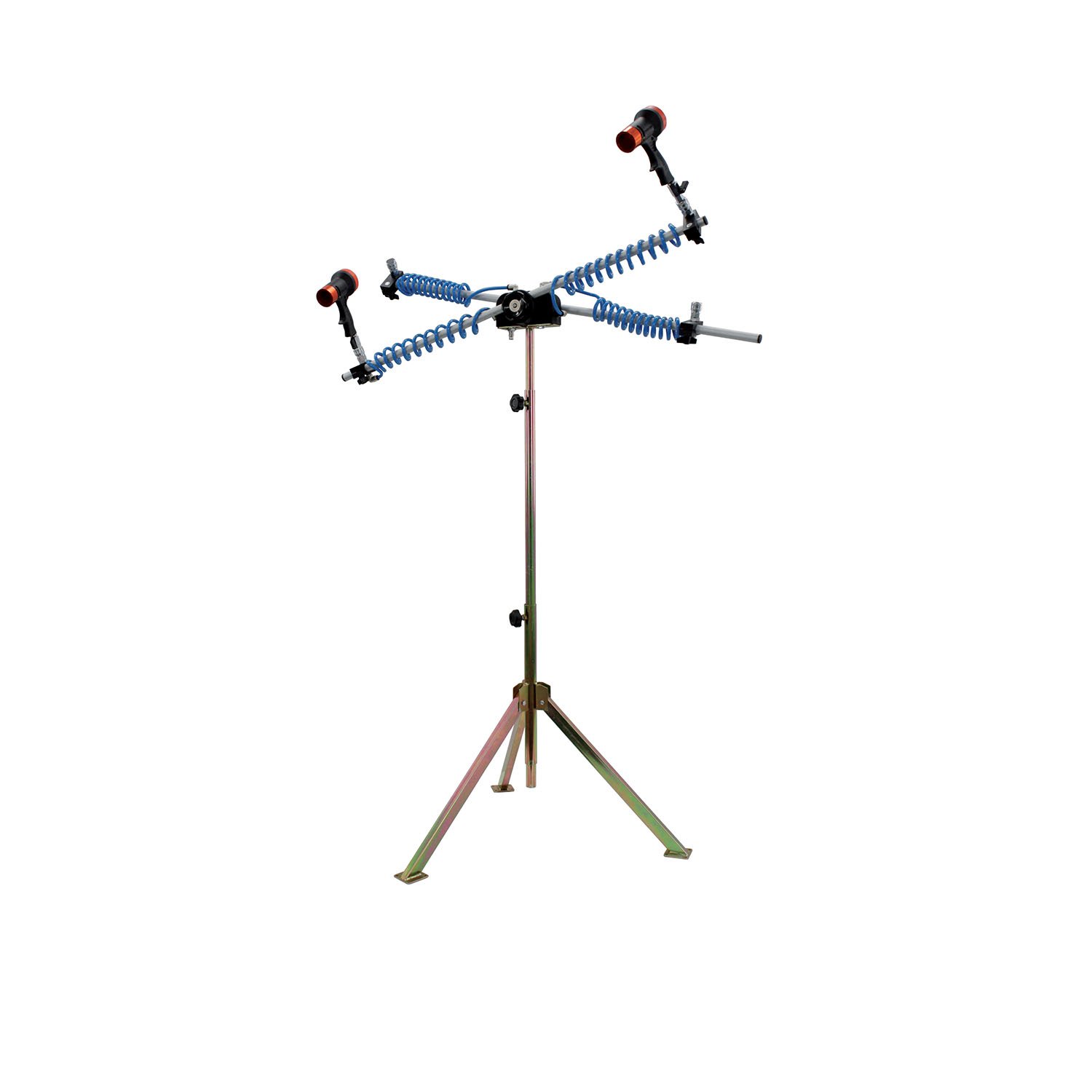

Ecodry Stand
Ref.
60165
Aluminium support with 2 Ecodry light - D plug
Ref.
60165/JP
Aluminium support with 2 Ecodry light - JP plug
Description
Ecodry stand drys any type of surface from 1 m distance.
Features
Zync steel structure, 4 anodized aluminum sustaining axis, adjustable
Fittings
X300 U - X400
Hose
Poliurethane sprial hose
Package
1 pcs
Dimensions
L 1.60 m x P 0.80 m x H 2.50 m
Weight
9.1 Kg

packaging

All our accessories are packed in safe box, plastic bag with hook system, configure to be easily stocked on shelves or grid stand.
