- Ref.
- 60151**
-

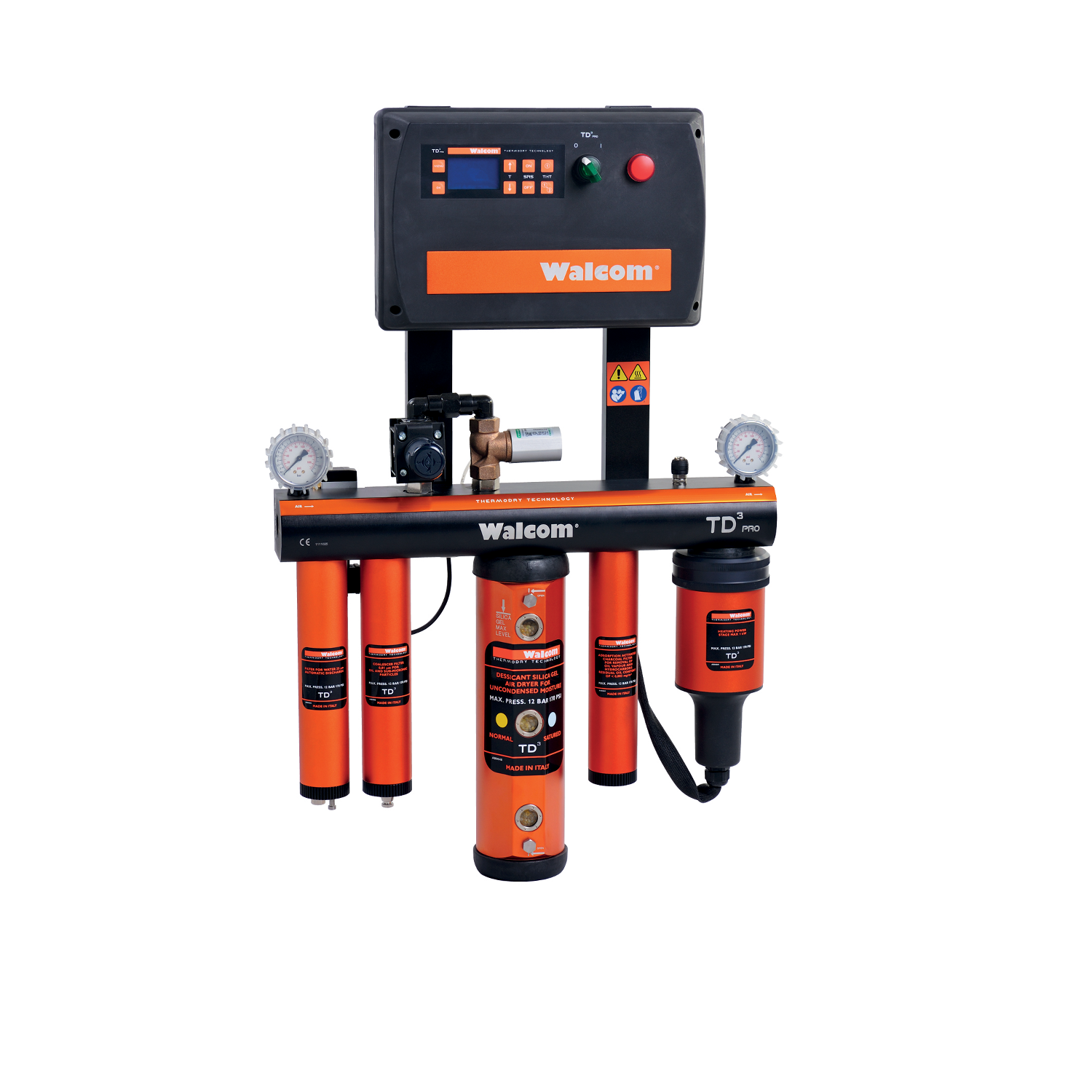

- Cabin booth integrated air conditioning and thermoregulation system
- Central Body
- Anodised aluminium

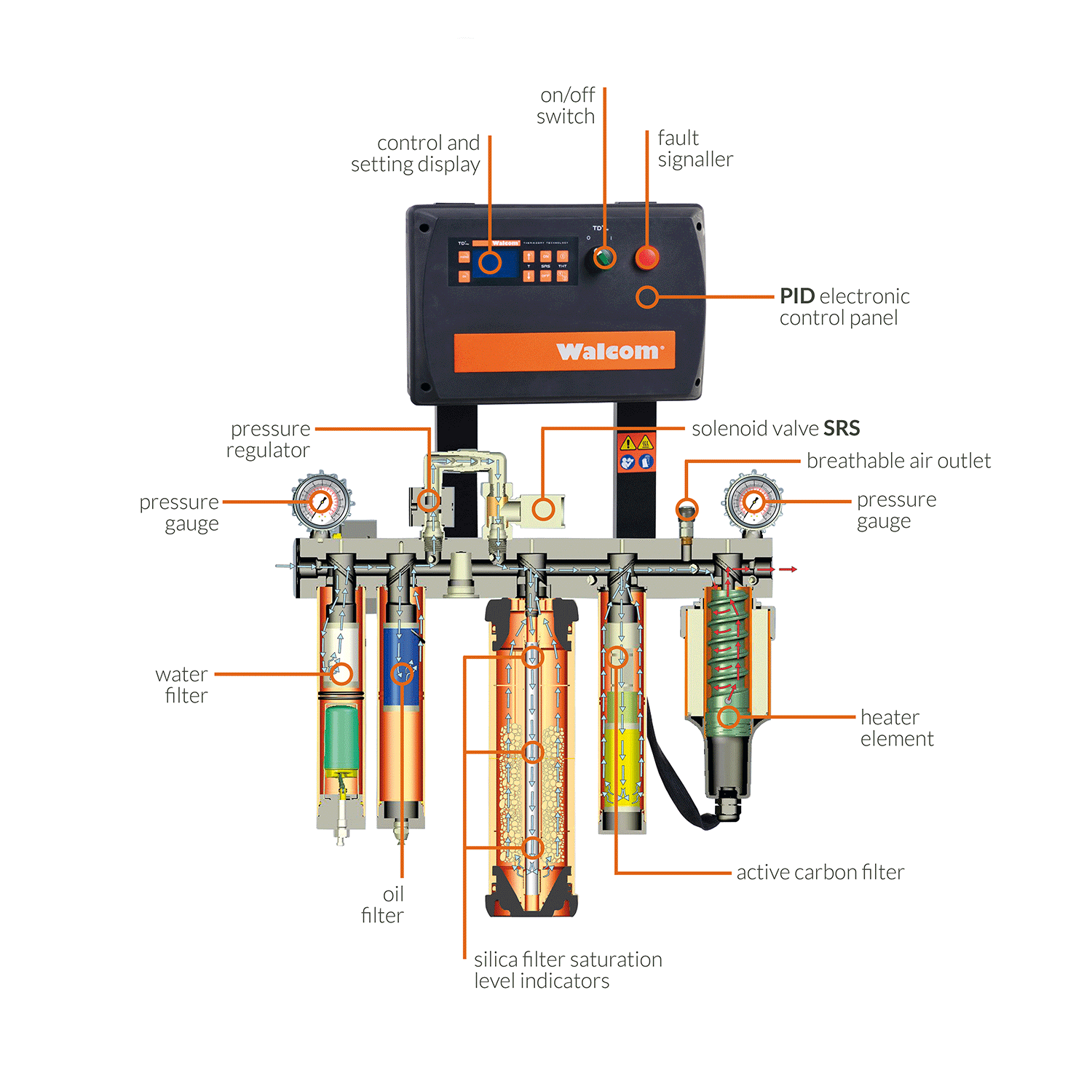

- Composition:
- 1) Synthetic fibre pre-filtering element that eliminates condensation. Automatic drain with safety rod for manual drain.
-
- 2) De-greaser filter to eliminate residual pollutants. Manual drain.
-
- 3) Drying group with silica gel that reduces residual humidity in compressed air. Possibility or silica gel regeneration with TD3 Pro hot air flow SRS valve. Silica gel lasts max 1 year.
-
- 4) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m^3
-
- 5) Heating elemenent with 1200 W power controlled by an electronic unit with PID retroactive system and SCR heating power regulation.
- Pressure regulator
- Membrane regulation and automatic decompression
- Air inlet
- F 1/2
- Air outlet
- F 1/2
- Filtering Power
- Air 5µ - oil 0.01µ
- Working pressure
- 12 bar
- Air consumption
- 1200 l/min to 6 bar
- Weight
- 21 Kg
- Combatible tube
- ThT (12 m) - Ref.60161
-
- ThT (17 m) - Ref.60163
-
- ThT (22 m) - Ref.60162
-
- ** Ref./T = with 1 remote control
